Type 2 FK LHD Narrowed Adjustable Beam – Ball Joint
Available for Pre Order

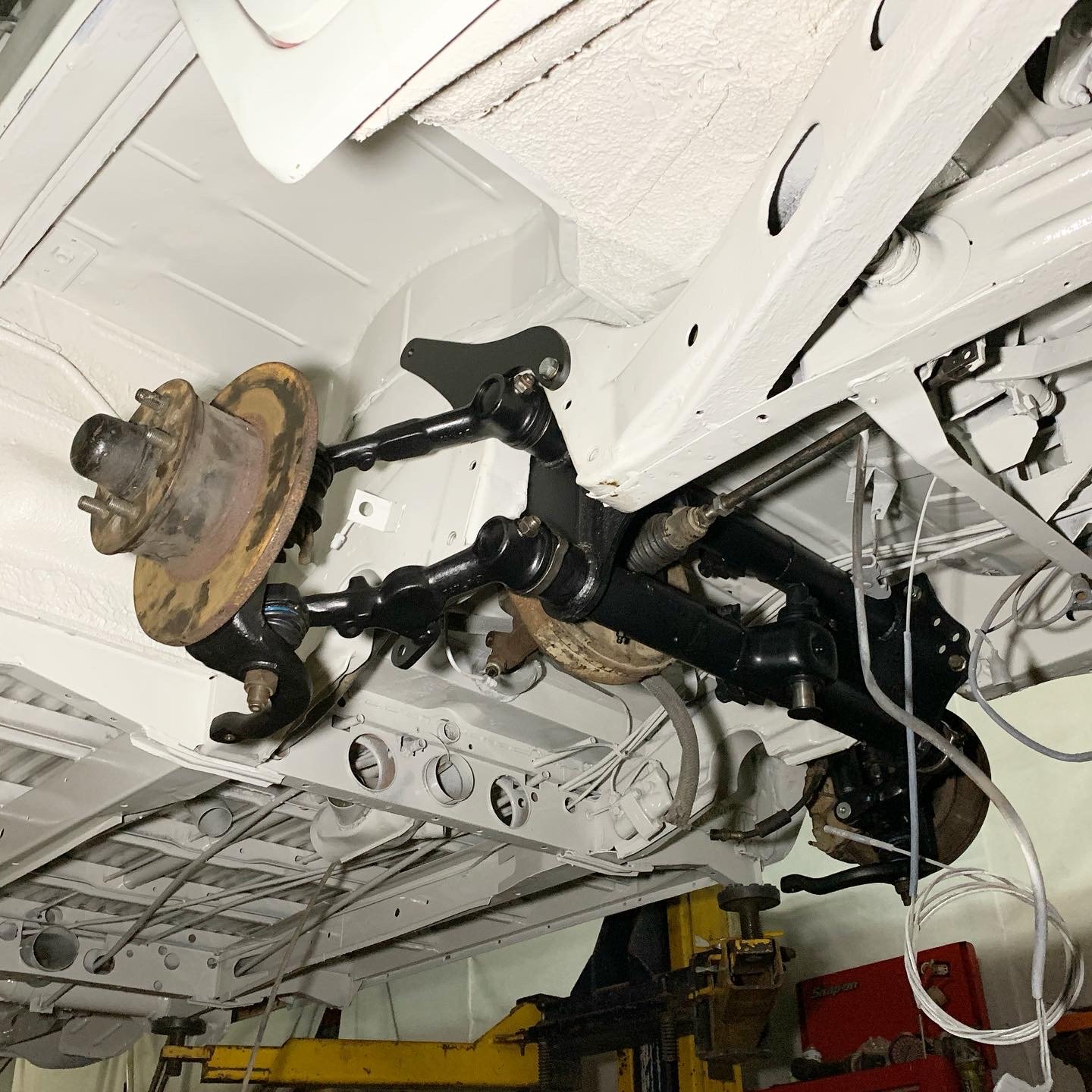

Fresh Kustoms Type 2 Narrowed and Adjustable Ball Joint beams are made from the finest materials.
Our tube is custom made from high grade steel then laser cut to ensure strength and accuracy.
Quality laser cut side plates in 10mm thickness with beam/chassis position mounting holes of stock location and 40mm raised (notching required) to the chassis for both split and bay chassis mounting hole configurations, these ball joint beams will fit any bus 55-79.
Each beam comes fitted with a pivot steering stop plate, brake booster bracket and steering damper mount.
Equipped with our new style Fresh Kustoms Beam Adjusters with long range tooth adjustment offering more adjustability than ever before you will get the stance of your car just where you want it.
What’s included;
Brand new Fresh Kustoms Premium Inner Composite Bushes (fibre outer with copper and teflon coated inner) to match the original factory produced bushes, this style of bush have lasted more than 50 years
Brand new outer needle roller bearings
Brand new Fresh Kustoms heavy duty steering pivot housing supplied with new steering pin assembly (pin bushes and seals supplied)
Brand new grease nipples
All beams are finished in satin black etch primer as standard with other coating options available in black powder coat or silver zinc electroplating at additional cost, you can choose these option.
All beams up to 4 inch narrowed have a one piece side plate and shock tower design.
All beams 5″ or narrower have the side plates mounted inside the chassis rails and the shock towers mounted outside of the chassis rails so these beams will have a two piece side plate/shock tower assembly (all necessary hardware supplied) these kits also come with the 40mm raised beam chassis notch weld in profile and lower shock offset plates this type of kit is perfect for running low with wide wheels on the front.
This product will fit a Splitwindow Kombi.
Please choose the desired narrowed width, coating option and supply of new narrowed torsion leave/spring packs and tie rod assemblies to match you beam before adding to the item to your cart.
Reminder - this product is for right hand drive vehicles
